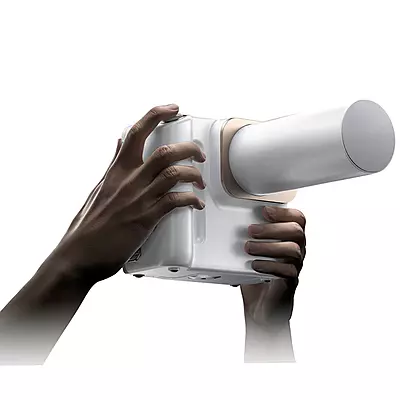

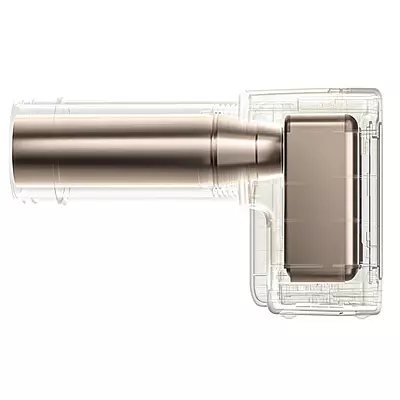

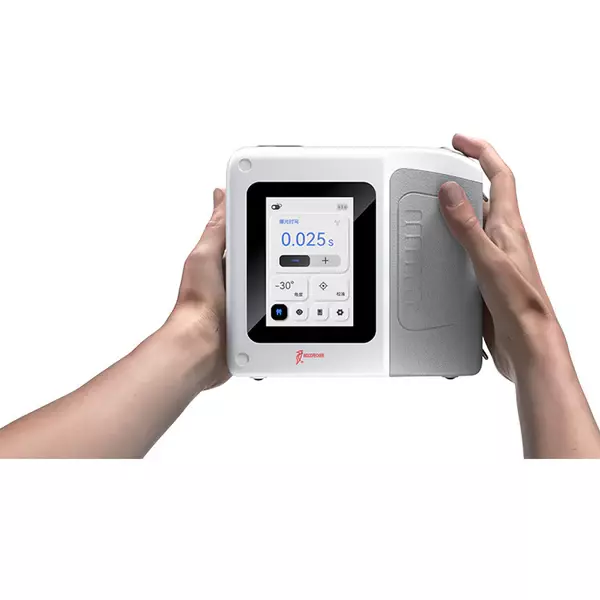

Waldent RTA Smart Ray Portable DC Xray Machine By Woodpecker
Description
Portable dental X-ray machine for high-quality imaging with minimal radiation exposure
Waldent RTA Smart Ray Portable DC Xray Machine By Woodpecker is a cutting-edge dental imaging device designed for professional use by dentists in clinical settings. This portable X-ray generator allows for efficient photography of teeth, providing high-quality dental images essential for accurate diagnosis and treatment planning. Its lightweight and compact design makes it easy for practitioners to carry and operate, enhancing mobility during procedures. The user-friendly interface simplifies exposure settings, ensuring ease of use. With low radiation output and high efficiency, it prioritizes patient safety while delivering excellent imaging results, making it an invaluable tool for modern dental practices.
- Power adapter model: UES48-150320SPA1
- Power input: 100-240V~ 50/60Hz 1.1A
- Internal power supply: DC 10.8V
- Power adapter output: DC 15.0V 3.2A
- Type of radiation: X-Ray
- Maximum output electric power: 0.14kw (70kV, 2mA)
- Nominal electric power: 0.14kw (70kV, 2mA, 0.1s)
- Tube voltage: tube voltage output is fixed at 70kV, error ±10%
- Tube current: tube current output is fixed at 2mA, error ±20%
- Focal spot: 0.4 mm
- Target angle: 12.5°
- Dimension: 240mm×161mm×143mm
- Weight: 2.2KG
- Battery specification: 18650×3 10.8V 2500mAh 27Wh R.
- Charger: 48W, Full charge in 1hour
- Exit field size: Φ5.9cm±0.1cm.
- Reference LOADING conditions: 70kV, 2mA, 1s, loading interval 1s/60s, 59 exposures per hour.
- Radiation output stated: the variation coefficient under the function less than 5%.
- Manufacturer/Importer warranty of 4 years as applicable for this product.
- Service and Warranty are handled by the manufacturer/importer directly for this product
